A CMOS 80mW 400MHz seventh-order MLF FLF linear phase filter with gain boost

Zhu, X., Sun, Y. and Moritz, J. (2008) A CMOS 80mW 400MHz seventh-order MLF FLF linear phase filter with gain boost. In: Procs IEEE 15th Int Conf on Electronics, Circuits & Systems : ICECS 2008. Institute of Electrical and Electronics Engineers (IEEE), pp. 300-303. ISBN 978-1-4244-2182-4
Copy

A 400MHz CMOS seventh-order linear phase gm-C filter based on current-mode (CM) follow-the-leader-feedback (FLF) structure is realized. The filter is implemented using a fully-differential linear operational transconductance amplifier (OTA) based on source degeneration topology. PSpice simulations in a standard TSMC 0.18mum CMOS process and with 2.5V power supply have shown that the cut-off frequency of the filter ranges from 290MHz to 430MHz and dynamic range is about 54dB. The group delay ripple is approximately 6% over the whole tuning range and total power consumption is only 78.7mW at 400MHz cut-off frequency.
Item Type Book Section
Additional information “This material is presented to ensure timely dissemination of scholarly and technical work. Copyright and all rights therein are retained by authors or by other copyright holders. All persons copying this information are expected to adhere to the terms and constraints invoked by each author's copyright. In most cases, these works may not be reposted without the explicit permission of the copyright holder." “Copyright IEEE. Personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution to servers or lists, or to reuse any copyrighted component of this work in other works must be obtained from the IEEE.”
Date Deposited 15 May 2025 16:24
Last Modified 30 May 2025 23:11

Explore Further

picture_as_pdf

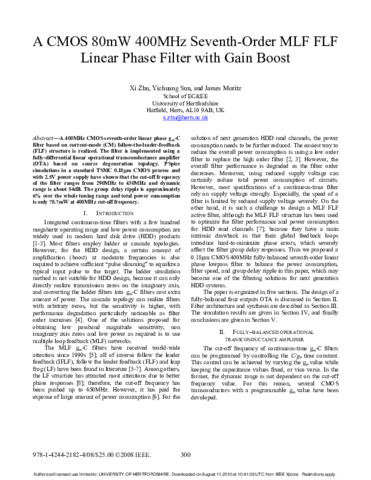

904211.pdf
